¶ 1.Pineapple Object Scanning

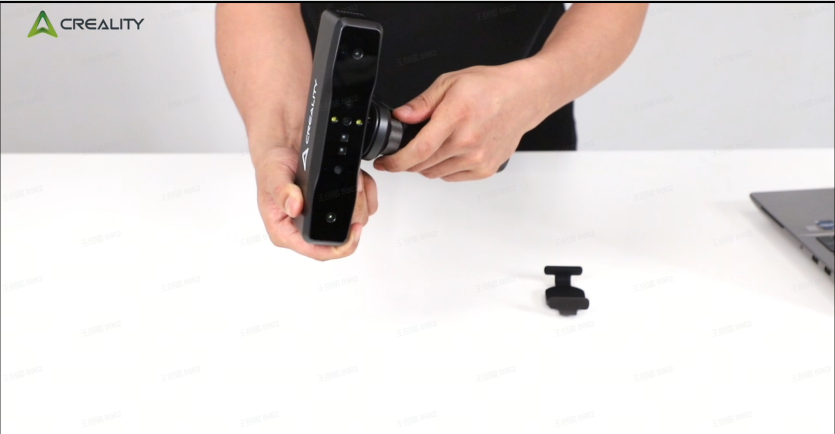

¶ Connect device：
Using Otter lite as an example, connect the device to the computer via the scan bridge.

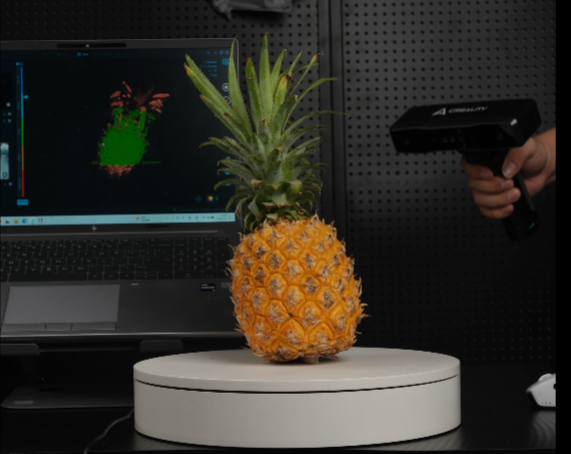

¶ Object Scanning:

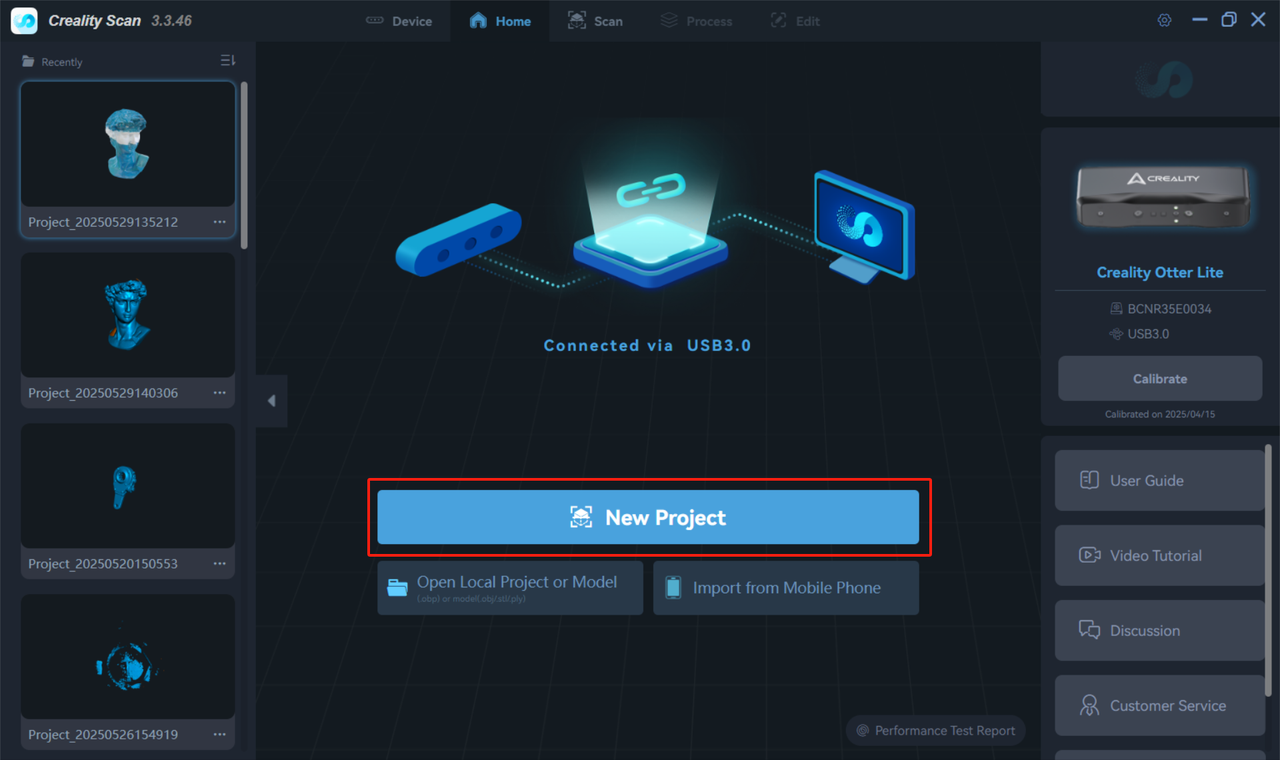

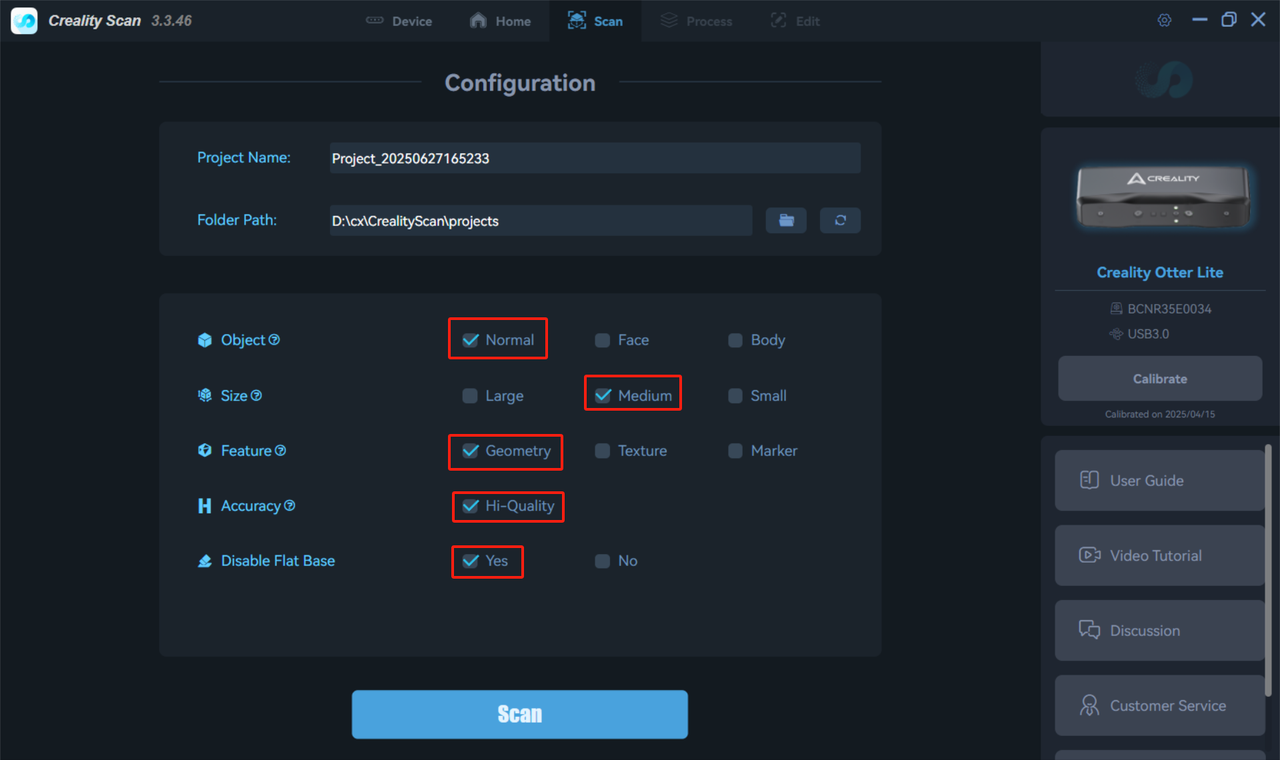

(1)Create a new project.

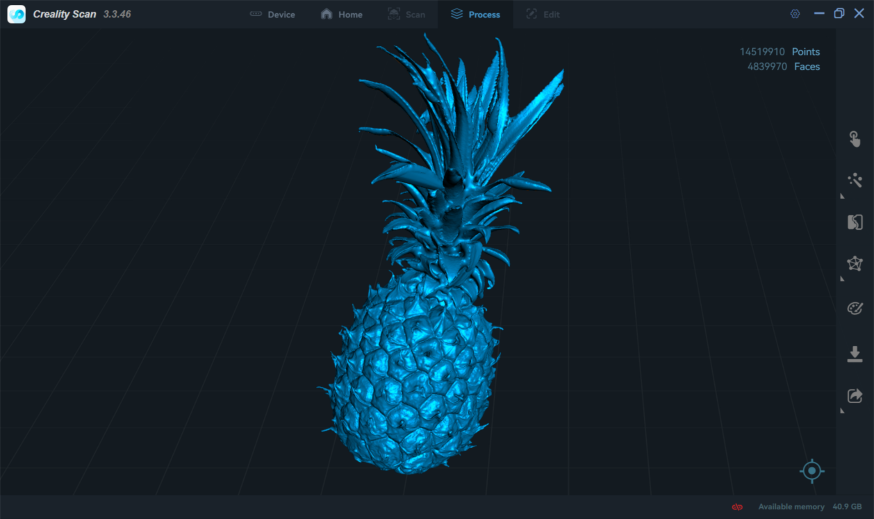

(4) Optimize the point cloud, generate a mesh model, and export it.
¶ 2. Pineapple Model Redesign

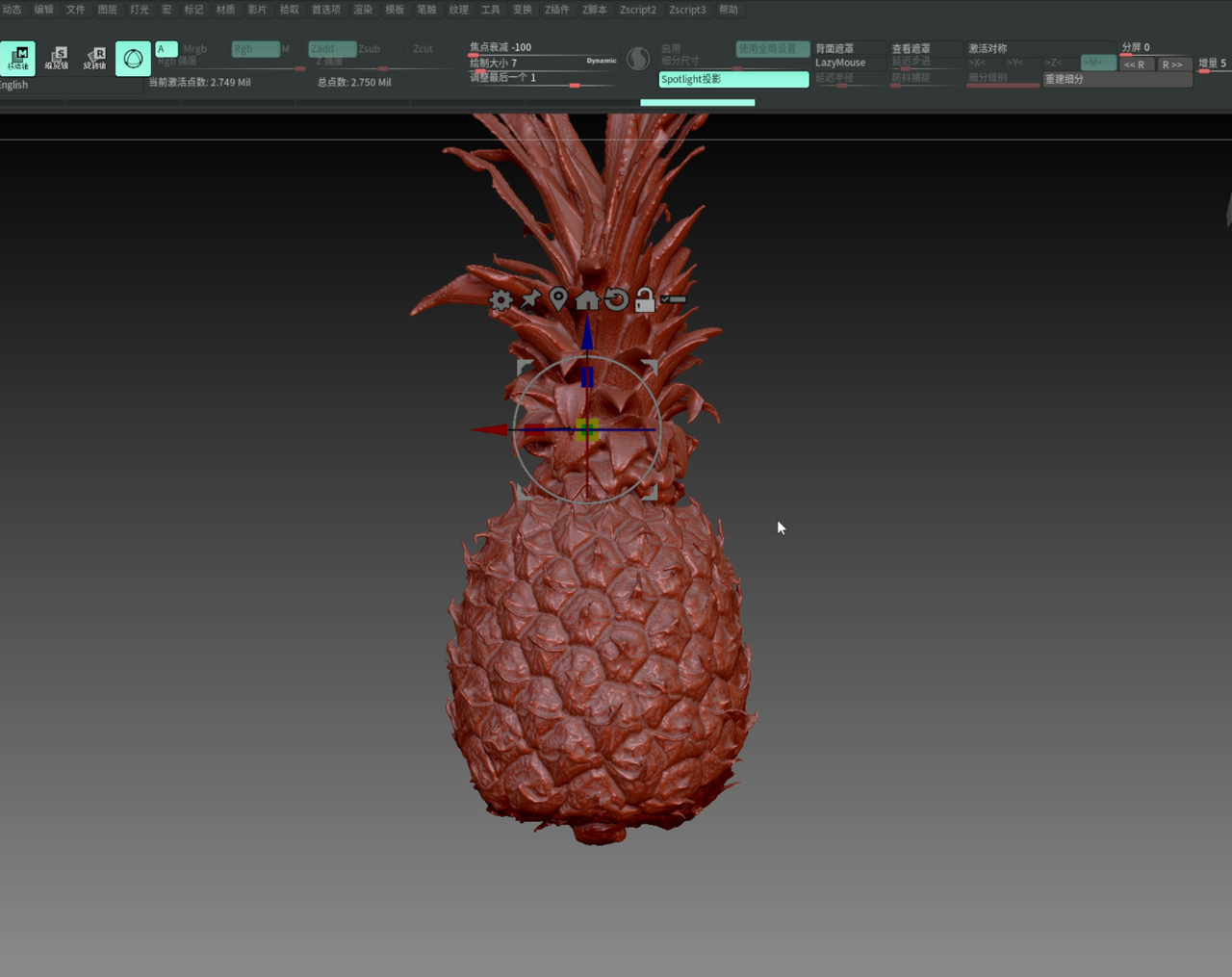

a. Import the scanned pineapple model into ZBrush software. Modify the model meshes to reduce polygon count, adjust deformations, and remove sharp edges/burrs for easier printing.

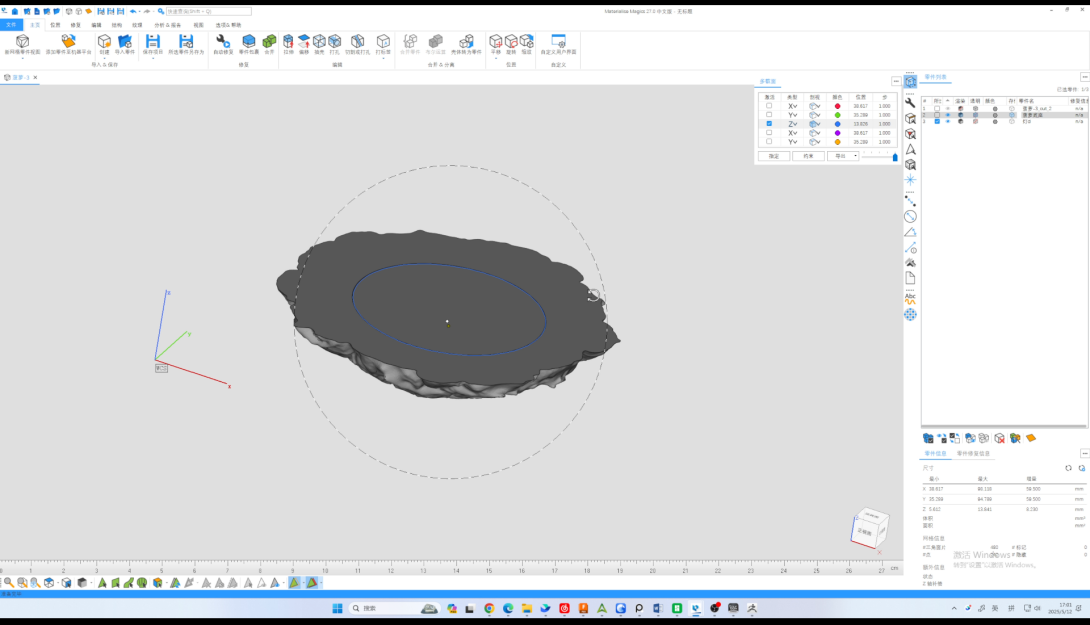

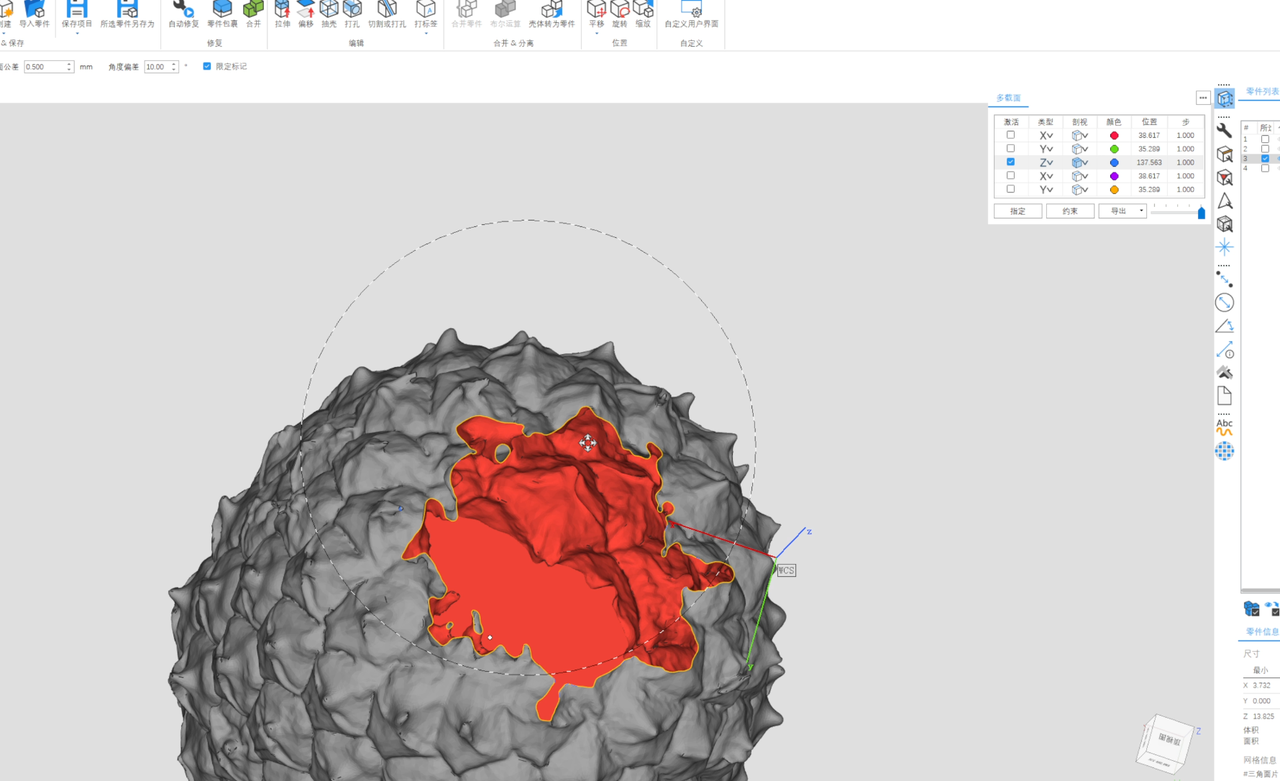

b. Import the repaired model file into Magics software. Split it into top and bottom sections. Cut out the lamp position at the bottom.
c. Hollow out the main body section, giving it a 1.2mm thickness.

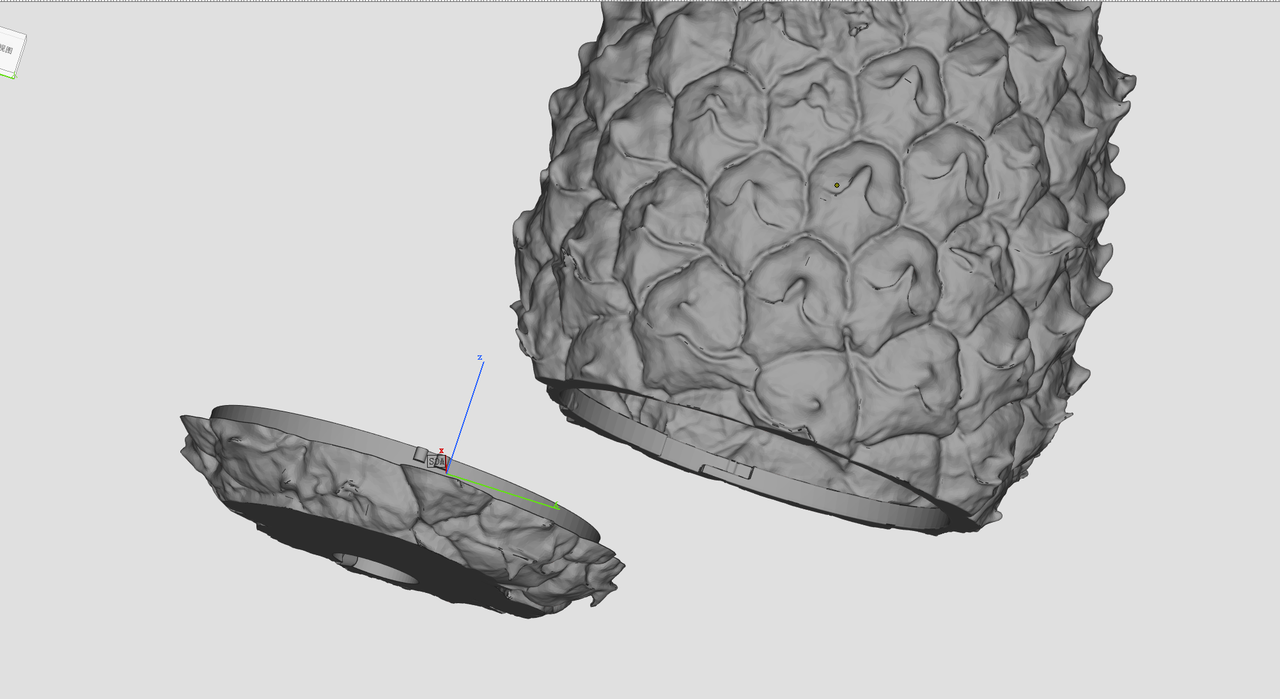

d. Model the rotary-locking structure for base-body assembly. For beginners in 3D-modeling, magnetic attraction can be opted for using 6x3mm magnets, which is a non-modeled solution.

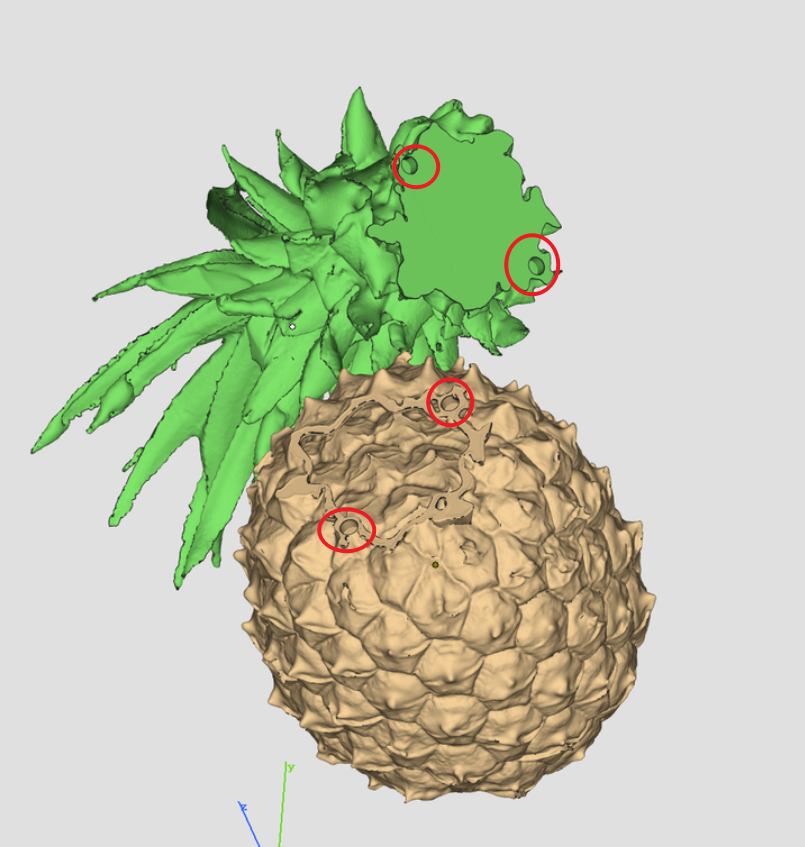

e. In Magics modeling software, drill holes precisely aligned magnet recesses on both the leaf and main body components, then connect them using 6x3mm magnets.

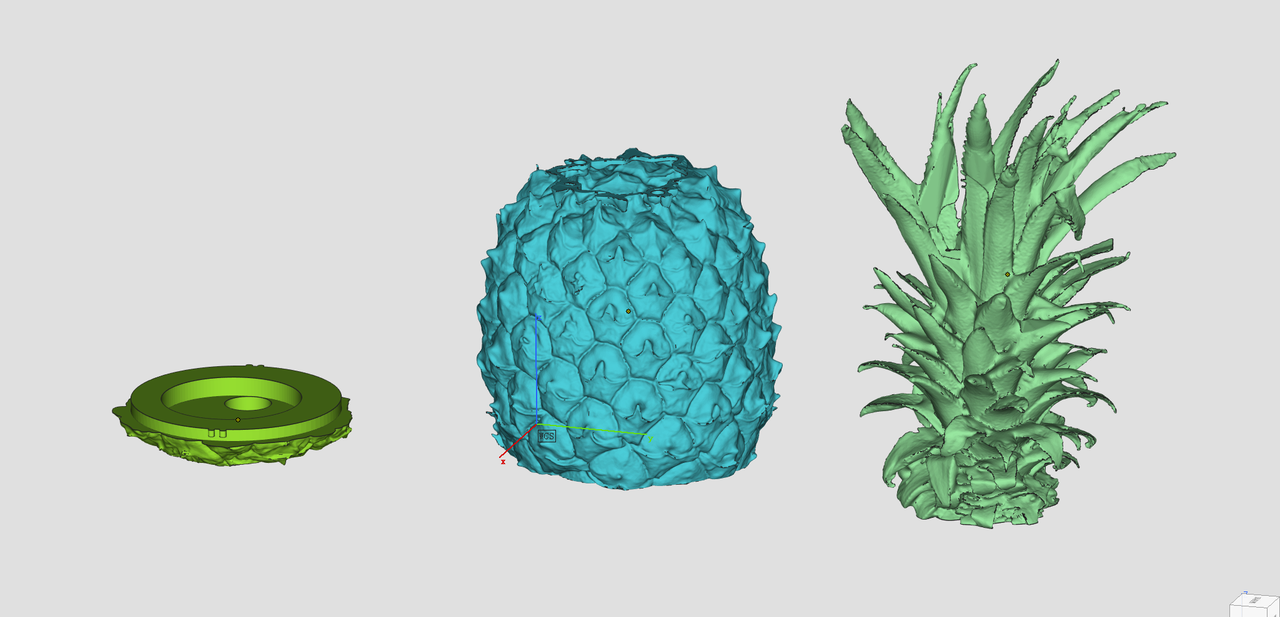

Final Model Presentation:
¶ 3. Pineapple Lamp Model Printing

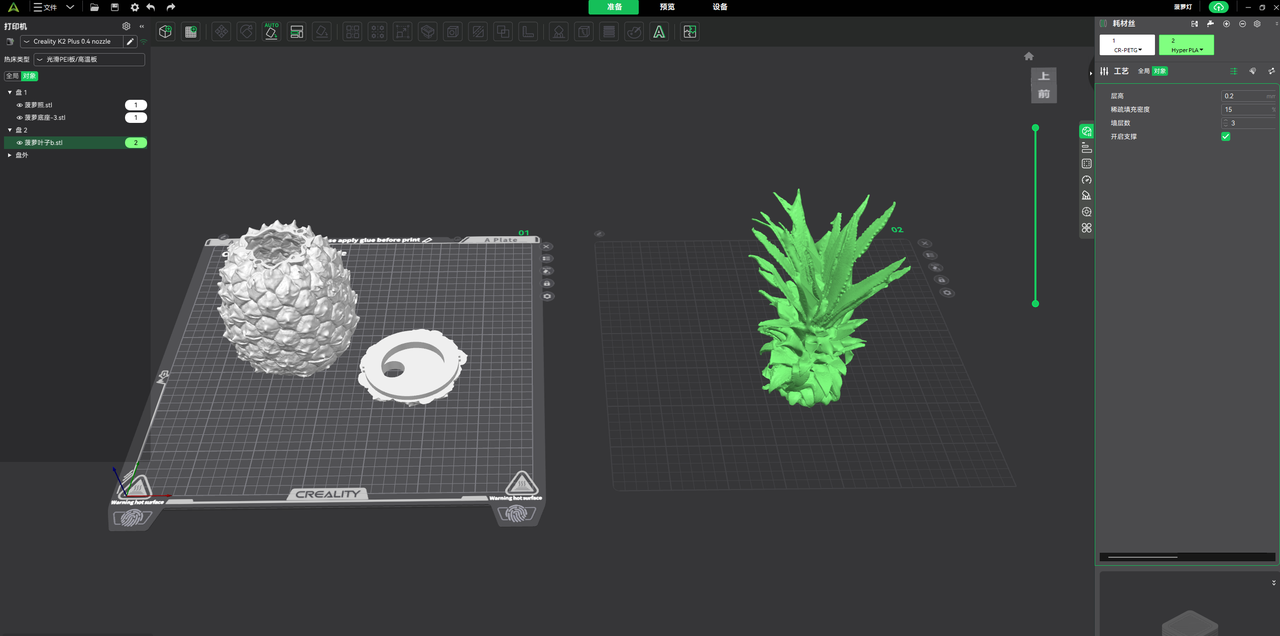

Input the model to CrealityPrint software for printing slicing:

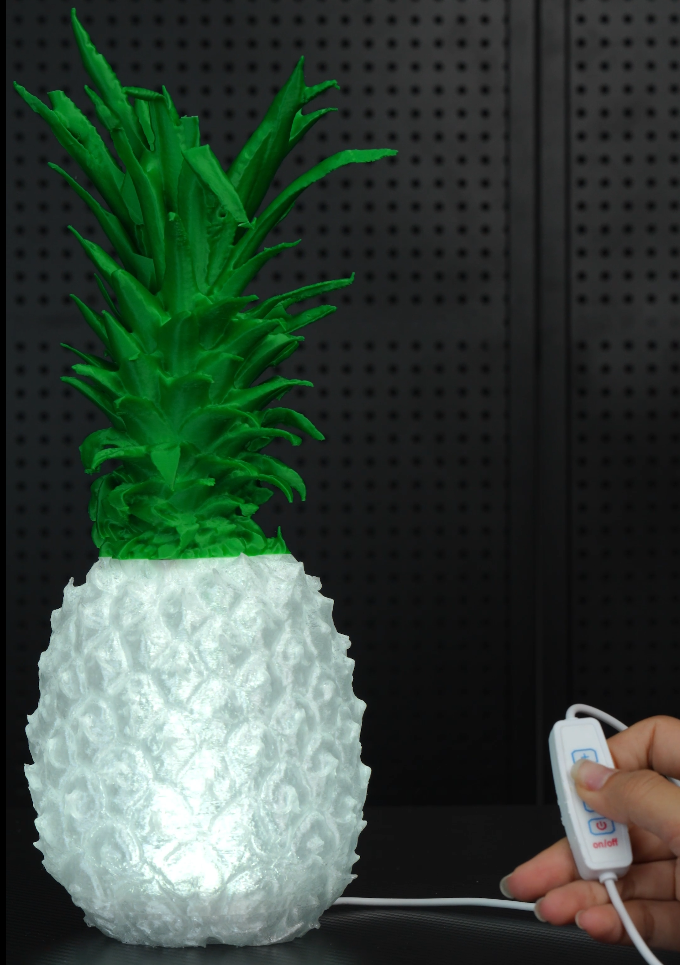

Print Result Showcase:
